POWER COMMANDER

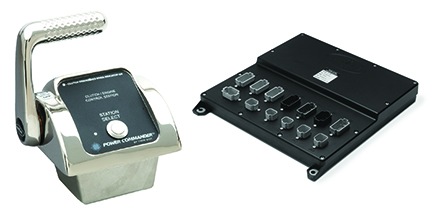

EC300 ENGINE/CLUTCH CONTROL SYSTEM

The EC300 Power Commander® Clutch/Engine Control system was developed specifically for applications requiring remote control of a hydraulic power take off (HPTO) or marine transmission and engine. The control system can have multiple remote control locations; each with a control head that provides the operator with neutral, clutch engage and throttle command, all on one lever.

The EC300 Clutch/Engine Control system is based on our EC300 Propulsion Control system which has been used in the commercial marine industry for nearly 15 years. The EC300 provides for a number of configurable operational features; however all systems provide for active system monitoring, diagnostics and fault indication with event logging. An optional display is available for providing both operational data and system diagnostics.

Description
  • Operate from 12VDC or 24VDC battery power
  • Operating temperature range: -40° to 70°C
  • J1939 CANBus interface includes operating status messages from the EC300
  • LED indicators for providing operational status as well as fault codes
  • Alarm relay output for fault conditions
  • Monitoring of engine speed to protect clutch during engagement process
  • Special clutch engagement profile for controlled engagement process, to help ensure precise clutch engagement without overloading the engine or damaging the clutch
  • Integrated brake control
  • Monitoring oil pressure, temperature and filter (if installed)
  • Actuator option for mechanically governed engine
