Dry Clutch

RO111P/211P

The RC is a series of hydraulically actuated dry-clutch Power Take Offs. Key design features of the RC PTO allow for installation in applications where the PTO may otherwise be difficult to service. An advanced control system can be used for “soft-starting” large inertia loads.

Description
  • Hydraulic or pneumatic actuation
  • 90 to 100 PSI (621 to 689KPA) engagement pressure
  • Suitable for side load and in-line applications
  • Tapered roller main bearings
  • Optional sintered iron and composite plates
  • Standard ball bearing throw out collar
  • Field conversion kits available
  • Transmits suitable application torque capacity
SPECIFICATIONS

Model Number

SAE
HSG.

Max. Input Torque
Nm (lb-ft)
Class I

Max. Input Torque
Nm (lb-ft)
Class I

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Maximum
Safe Speed

Maximum
Safe Speed

Weight
kg (lbs)

Solid Plates

Split Plates

Organic

Sintered

Class II

Class III

Class IV

Nodular
Drive Ring

Nodular
Drive Ring

RO111P1, RO111P2, RO111P3

1,2,3

617 (455)

746 (550)

124

82

62

3600

3200

58 (129)

RO211P1, RO211P2, RO211P3

1,2,3

1235 (910)

1493 (1100)

247

165

124

3000

3000

79 (175)

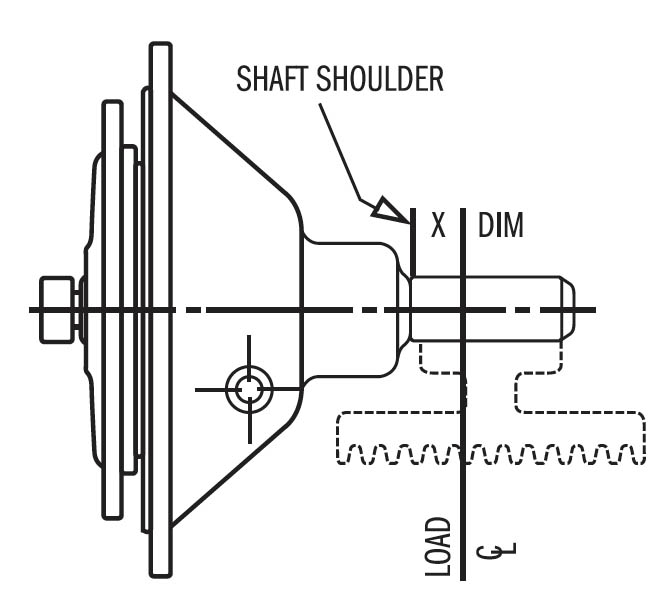

DIMENSIONS
Enlarge
Publications:
Installation Drawings:

Model

Drawing Number

Clutch Group

SAE Housing

Ouput Shaft

Pilot Bearing

Download

RO111HP3

1028715A

1 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #3

Ø2.25″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP

RO111HP3

1028715B

1 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #3

Ø2.25″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO111HP3

1028715F

1 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #3

Ø2.25″ x 4.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP

RO111HP1

1028715C

1 plate, 11″ PLATE: SPLIT SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #1

Ø2.25″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO111HP2

1028715D

1 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #2

Ø2.25″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP

RO111P2

1028715E

1 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.0″ BALL BRG

SAE #2

Ø2.25″ x 5.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP

RO211HP3

1028710A

2 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.5″ BALL BRG

SAE #3

Ø2.50″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

IGS

RO211HP3

1028710B

2 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.5″ BALL BRG

SAE #3

Ø2.50″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP

RO211HP3

1028710E

2 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.5″ BALL BRG

SAE #3

Ø2.50″ x 4.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO211HP1

1028710C

2 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.5″ BALL BRG

SAE #1

Ø2.50″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO211HP2

1028710D

2 plate, 11″ PLATE: SOLID MOLDED COLLAR: 2.5″ BALL BRG

SAE #2

Ø2.50″ x 6.5″

72mm BALL BRG (CARTRIDGE SEALED)

IGS
