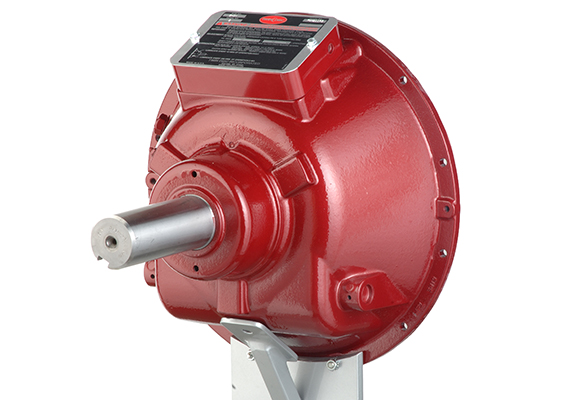

Dry Clutch

RO114P/214P

The RC is a series of hydraulically actuated dry-clutch Power Take Offs. Key design features of the RC PTO allow for installation in applications where the PTO may otherwise be difficult to service. An advanced control system can be used for “soft-starting” large inertia loads.

Description
  • Hydraulic or pneumatic actuation
  • 90 to 100 PSI (621 to 689KPA) engagement pressure
  • Suitable for side load and in-line applications
  • Tapered roller main bearings
  • Optional sintered iron and composite plates
  • Standard ball bearing throw out collar
  • Field conversion kits available
  • Transmits suitable application torque capacity
SPECIFICATIONS

Model Number

SAE
HSG.

Max. Input Torque
Nm (lb-ft)
Class I

Max. Input Torque
Nm (lb-ft)
Class I

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Maximum
Safe Speed

Maximum
Safe Speed

Weight
kg (lbs)

Solid Plates

Split Plates

Organic

Sintered

Class II

Class III

Class IV

Nodular
Drive Ring

Nodular
Drive Ring

RO114P0, RO114P1,

0,1

1098 (810)

746 (550)

188

125

94

3000

2750

134 (296)

RO214P0, RO214P1,

0,1

2196(1610)

1493 (1100)

376

251

188

3000

2750

188 (416)

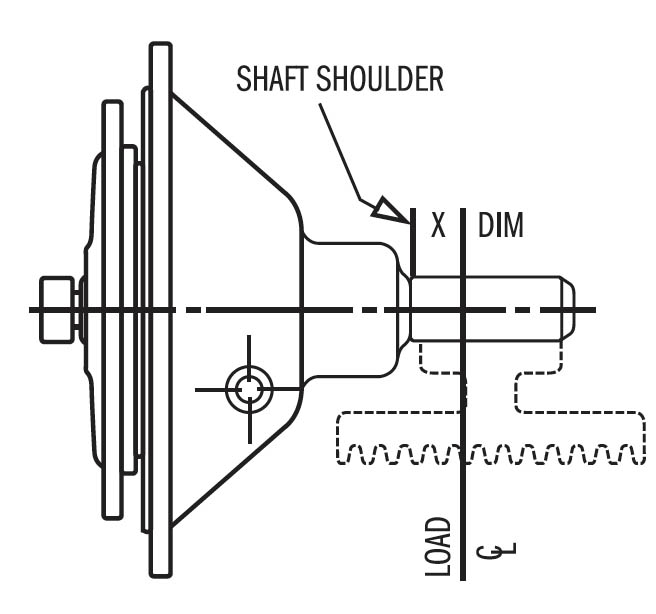

DIMENSIONS
Enlarge
Publications
Installation Drawings:

Model

Drawing Number

Clutch Group

SAE Housing

Ouput Shaft

Pilot Bearing

Download

RO114P1

1030488A

1 plate, 14″ PLATE: SOLID MOLDED COLLAR: 2.75″ BALL BRG

SAE #1

Ø3.00″ x 8.5″

80mm BALL BRG (CARTRIDGE SEALED)

STEP
IGS

RO214P1

1030489A

2 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #1

Ø3.50″ x 10″

80mm BALL BRG (CARTRIDGE SEALED)

IGS
