Dry Clutch

RO314P/311P

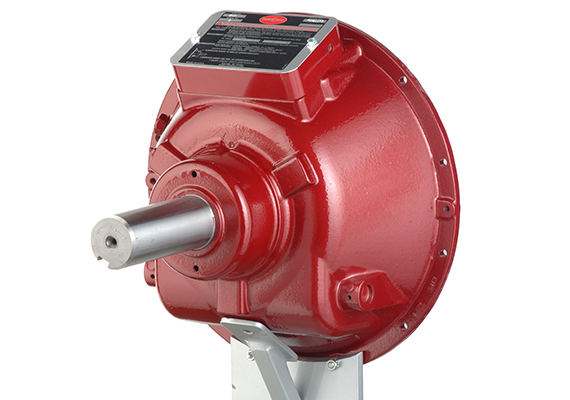

The RC is a series of hydraulically actuated dry-clutch Power Take Offs. Key design features of the RC PTO allow for installation in applications where the PTO may otherwise be difficult to service. An advanced control system can be used for “soft-starting” large inertia loads.

Description
  • Hydraulic or pneumatic actuation
  • 90 to 100 PSI (621 to 689KPA) engagement pressure
  • Suitable for side load and in-line applications
  • Tapered roller main bearings
  • Optional sintered iron and composite plates
  • Standard ball bearing throw out collar
  • Field conversion kits available
  • Transmits suitable application torque capacity
SPECIFICATIONS

Model Number

SAE
HSG.

Max. Input Torque
Nm (lb-ft)
Class I

Max. Input Torque
Nm (lb-ft)
Class I

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Clutch Maximum HP Rating

Maximum
Safe Speed

Maximum
Safe Speed

Weight
kg (lbs)

Solid Plates

Split Plates

Organic

Sintered

Class II

Class III

Class IV

Nodular
Drive Ring

Nodular
Drive Ring

RO314P0, RO314P1,

0,1

3295 (2430)

4195 (3094)

564

376

282

3000

2700

259(572)

RO311P0, RO311P1,

0,1

2196(1610)

2793 (2060)

371

247

186

3000

N/A

217 (478)

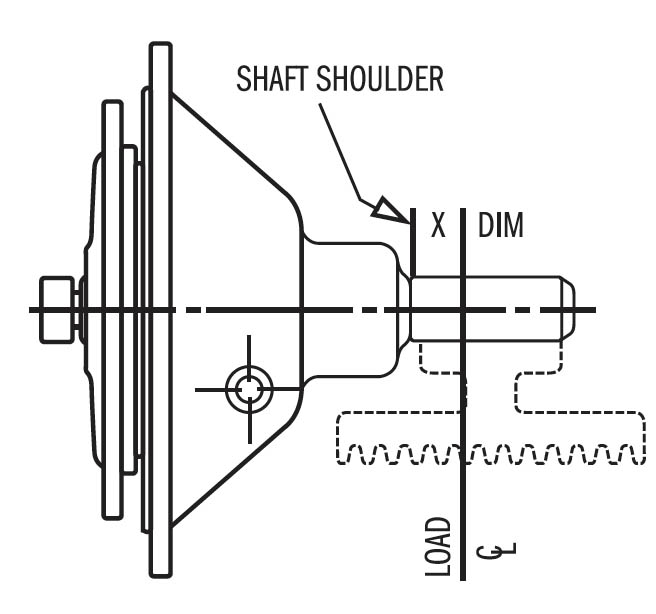

DIMENSIONS
Enlarge
Publications:
Installation Drawings:

Model

Drawing Number

Clutch Group

SAE Housing

Ouput Shaft

Pilot Bearing

Download

RO314P1

1030490A

3 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #1

Ø3.94″ x 10″ (SPACER)

80mm BALL BRG (CARTRIDGE SEALED)

STEP
IGS

RO314P1

1030490B

3 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #1

Ø3.94″ x 10″

80mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO314P1

1030490C

3 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #1

Ø3.94″ x 10″

100mm BALL BRG. (CARTRIDGE SEALED)

RO311HP3

1030487A

3 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #3

Ø3.50″ x 10″ (SPACER)

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS

RO311HP3

1030487B

3 plate, 14″ PLATE: SOLID MOLDED COLLAR: 3.50″ BALL BRG

SAE #3

Ø3.50″ x 10″

72mm BALL BRG (CARTRIDGE SEALED)

pdf
STEP
IGS
