Katsa Transfer Cases

2AL250 Versatile Drivetrain Transfer Gearbox

L430 Drivetrain PTO Upbox

Built for the Toughest Jobs

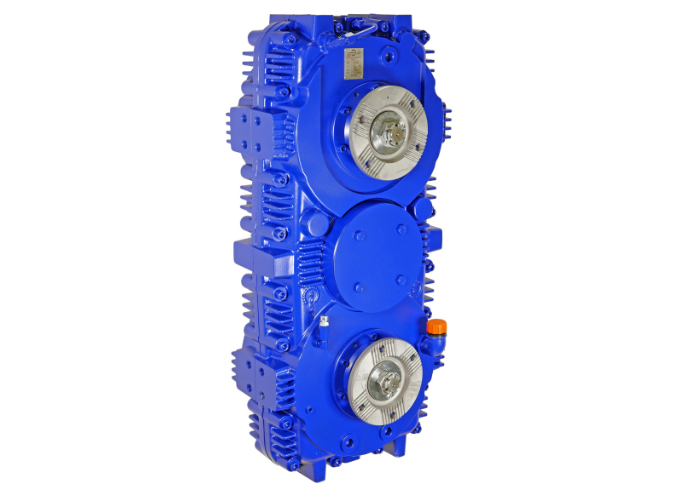

2AL250 Versatile Drivetrain Transfer Gearbox

Nearly all heavy-duty vehicles require a robust transfer case to effectively transmit power and torque from the power pack to the drivetrain. In multi-wheel drive configurations, it’s also essential to efficiently split power between the axles.

Description

Center Distance

  • Full freedom in vertical and horizontal displacement

Multiple Speed Ranges

  • Pneumatically or hydraulically operated gear shifter
  • Automatic shifting with hydraulically operated clutches

Optional PTO’s

  • For pumps, compressors, etc.

Housing Materials

  • Aluminum, grey casting, etc.

Optional Accessory

  • Oil-Filters & Coolers
  • Clutch Control Unit
  • KAreTM – Katsa Remote Condition
Overview

Transfer Gearbox

  • Compact and lightweight design for highest performance reliability
  • Aluminum housing for high thermal capacity
  • Versatile design options for optimal technical configuration
  • Optional PTOs

Standard PTO SAE Pump Splines

  • ANSI B92.1 14T 12/24 DP
  • ANSI B92.1 16/32 21T
  • ANSI B92.1 8/16 13T
  • DIN5480 N40 x 2 x 19 x 9H
  • Other spline types on request
Technical Specifications

Input Power Max.

600 kW

Input Speed Nom./Max.

1500 rpm / 3500 rpm

Transferrable Torque Nom. / Max

3000 Nm / 18000 Nm

Centre Distance

500 mm

Gear Ratios

i=1.2:1 … 1:1

Input Connection Options

-Driveshaft Flanges XS, T150, T180
-Engine Flange SAE 3 to SAE 1
-Customized Driveshaft Connection

Main Output

-Driveshaft Flanges XS, T150, T180 or SAE (ISO8667)
-Single or Bidirectional Output
-Optional Differntial up to 10,000 Nm Output Torque

Optional PTOs

-Pump Pad SAE B to SAE C
-Shaft Connection

Seight

~230 kg (Aluminum Housing)

Engine Speed

INPUT SPEED

OUTPUT SPEED AT i=1.20

1500 rpm

1250 rpm

2000 rpm

1667 rpm

2500 rpm

2083 rpm

3000 rpm

2500 rpm

3500 rpm

2917 rpm
