Standard Transmission

TMC 60 A

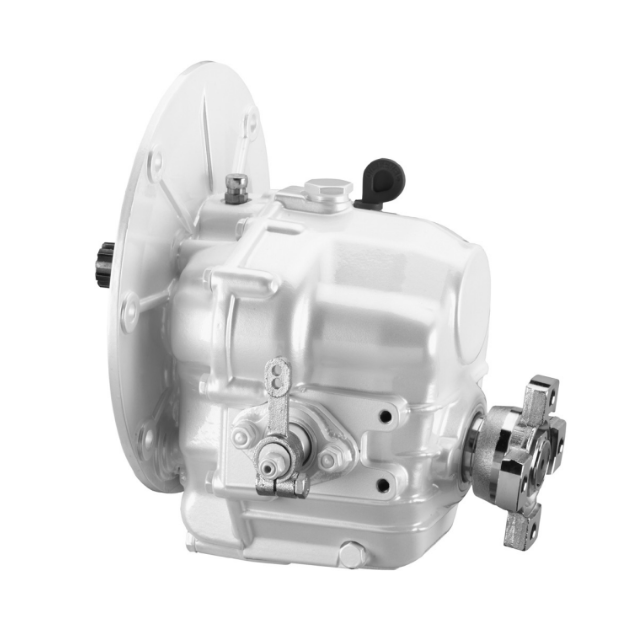

The Technodrive TMC 60 A marine gearbox unit is equipped with conical clutches that are mechanically operated and activated by a servo-system. The gears are specially designed for smooth, quiet operation, and the bearings are generously sized for durability and reliability.

Specifications
  • BW housing
  • SAE 5 bell housing
  • Cable bracket
Technical Data

Ratio

Input Ratings

Forward

Reverse

Pleasure

Pleasure

Intermediate

Intermediate

Continuous

Continuous

2.00

2.17

3000 rpm

3600 rpm

2800 rpm

3000 rpm

1800 rpm

2300 rpm

2.45

2.17

41 (55)

49 (66)

32 (43)

35 (47)

17 (23)

22 (30)

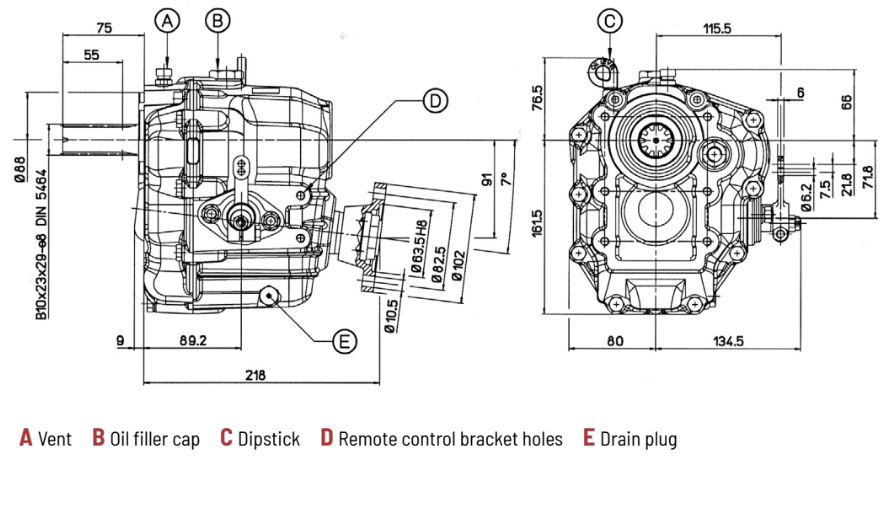

Dimensions

Dimensions are in mm

Enlarge
Duty Classification

Max. Engine Speed

Max. Engine Power

Max. Power in Reverse

Dry Weight

Oil Quantity

Oil Type

4500 rpm

52 kW (70 hp)

33% of listed ratings

15 kg (33 lbs)

0.60 L (0.16 gal)

ATF
