TM 93 A

Technodrive: Brand Overview <

TM 93 A

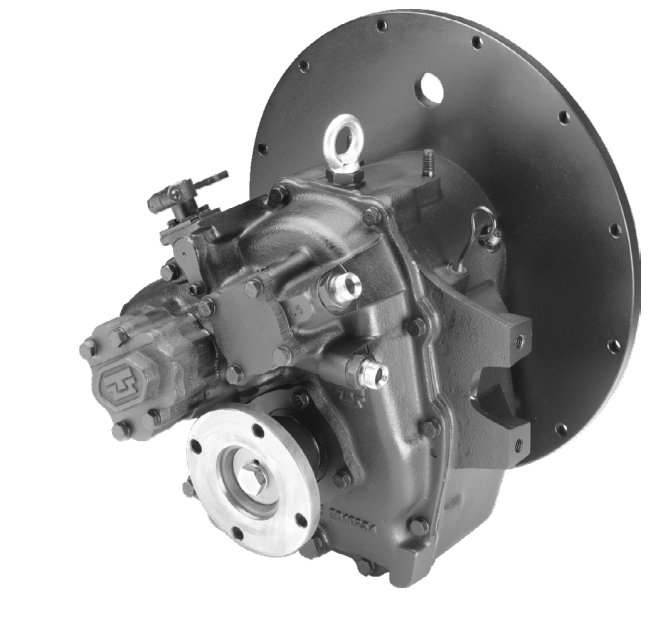

The Technodrive TM 93 A marine transmission is equipped with hydraulically operated multi-disc clutches. Both the clutches and gears are designed to transmit full engine power with the same gear ratio in both forward and reverse. An 8 degree down-angle on the output shaft ensures proper alignment for engine and gearbox installation in planing or semi-displacement hulls.

Specifications Technical Data Torsional Responsibility

Specifications

SAE 3, 4, BW bell housings
10″ – 11.5″ torsional couplings
Cable bracket
Heat exchanger kit
Trolling valve
Propeller shaft flange
Electric control valve

Technical Data

Reduction Ratios	Pleasure Craft	Pleasure Craft	Intermediate Duty	Intermediate Duty	Continuous Duty	Continuous Duty
	2600 rpm	3300 rpm	2100 rpm	2800 rpm	1800 rpm	2400 rpm
1.51	128 (172)	162 (217)	79 (106)	106 (142)	47 (63)	63 (84)
2.09	106 (142)	135 (181)	66 (89)	88 (118)	39 (52)	52 (70)
2.40	93 (125)	117 (157)	57 (76)	76 (102)	34 (46)	45 (60)

Torsional Responsibility

Disregarding propulsion system torsional compatibility could cause damage to components in the drive train resulting in loss of mobility. At minimum, system incompatibility could result in gear clatter at low speeds.

The responsibility for ensuring that the torsional compatibility of the propulsion system is satisfactory rests with the assembler of the drive and driven equipment.

Diagram Publications

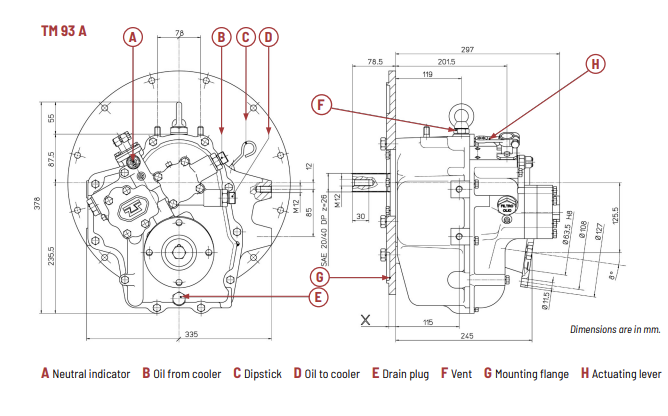

Diagram
