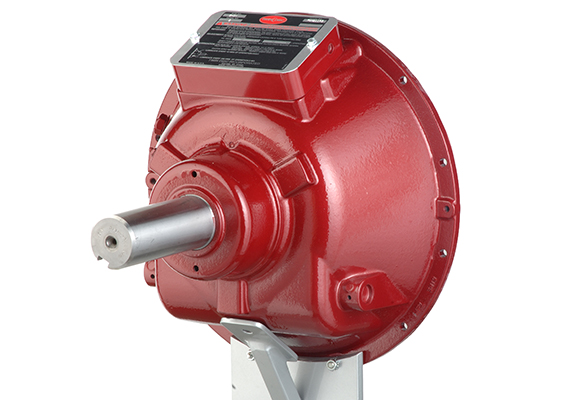

RO314P/311P

  • Hydraulic or pneumatic actuation
  • 90 to 100 PSI (621 to 689KPA) engagement pressure
  • Suitable for side load and in-line applications
  • Tapered roller main bearings
  • Optional sintered iron and composite plates
  • Standard ball bearing throw out collar
  • Field conversion kits available
  • Creates suitable application torque capacity

PTO Application Data Sheet (157k pdf)

SPECIFICATIONS



Model Number SAE
HSG.
Max. Input Torque
Nm (lb-ft)
Class I
Clutch Maximum HP Rating Maximum
Safe Speed
Weight
kg (lbs)
Organic Sintered  Class II Class III Class IV Solid Plates Split Plates
Nodular
Drive Ring
Nodular
Drive Ring
RO314P0, RO314P1, 0,1 3295 (2430) 4195 (3094) 564 376 282 3000 2700 259(572)
RO311P0, RO311P1, 0,1 2196(1610) 2793 (2060)  371 247 186 3000 N/A 217 (478)



DIMENSIONS

RO Drawing

Publications:

Description Download
Product BulletinPDF
Mechanical Power Take-Off's - Selection GuidePDF
Industrial CapabilitiesPDF

Installation Drawings:

Model Drawing Number Clutch Group SAE Housing Ouput Shaft Pilot Bearing Download
RO314P11030490A3 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.50" BALL BRGSAE #1Ø3.94" x 10" (SPACER)80mm BALL BRG (CARTRIDGE SEALED)STEP IGES
RO314P11030490B3 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.50" BALL BRGSAE #1Ø3.94" x 10" 80mm BALL BRG (CARTRIDGE SEALED)PDF STEP IGES
RO314P11030490C3 plate, 14" PLATE: SINTERED COLLAR: 3.50" BALL BRGSAE #1Ø3.94" x 10" 100mm BALL BRG. (CARTRIDGE SEALED)
RO311HP31030487A3 plate, 11" PLATE: SOLID MOLDED COLLAR: 3.50" BALL BRGSAE #3Ø3.50" x 10" (SPACER)72mm BALL BRG (CARTRIDGE SEALED)PDF STEP IGES
RO311HP31030487B3 plate, 11" PLATE: SOLID MOLDED COLLAR: 3.50" BALL BRGSAE #3Ø3.50" x 10"72mm BALL BRG (CARTRIDGE SEALED)PDF STEP IGES
