The EC300 Backup Propulsion Control System provides fully redundant propulsion control of EC300 Power Commander systems with electronically governed engine and Twin Disc Quickshift® marine transmissions. Only the wiring to the marine transmission is shared; all other control devices are independent for primary and backup propulsion control.

The Backup is available for electronically governed engines that require a 4-20mA throttle signal. Ask us about other throttle signal options.

• Plug-and-play interface box for Twin Disc Quickshift® and standard marine transmissions configured for EC300, with associated harnesses

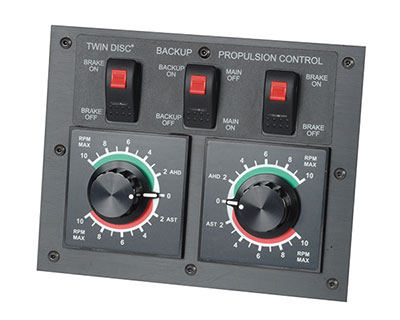

  • Intuitive operator panel with integrated throttle/transmission control knobs
  • Backup engine and marine transmission commands can be received directly from a compatible, customer-supplied local operator panel
  • Integral “direction confirmation” feedback for engine systems that require potential free contacts to confirm ahead, neutral, astern
  • Integrated neutral start interlock inhibits engine start when either the backup system is commanding clutch engagement, or the marine transmission manual override is engaged
  • Two interface boxes and operator panels can be used for backup on triple or quad-screw vessels
  • Option for backup control of Twin Disc marine transmission with internal shaft brake
