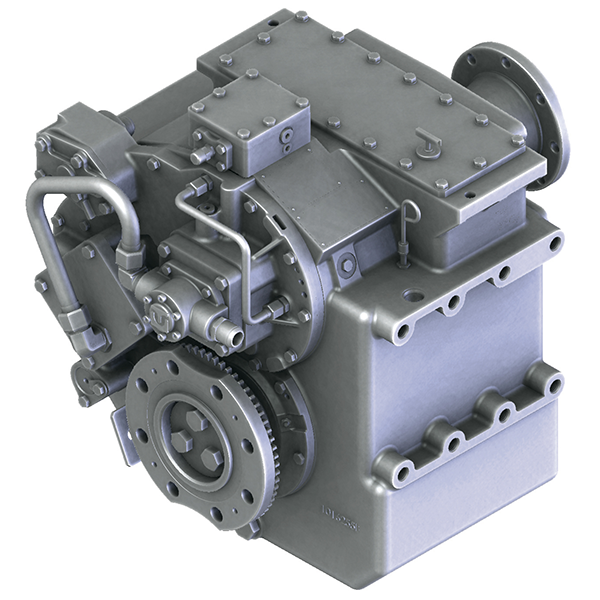

HYBRID-READY MARINE TRANSMISSION

MGE-5204SC

Twin Disc has taken its field-proven marine transmissions and created the MGE Series of gearboxes. This design provides power from the motor immediately in both clockwise and counter-clockwise directions. All units are equipped with a bi-directional oil pump to provide lubrication no matter the direction of shaft rotation, making these units a perfect fit for serial hybrid and diesel-electric applications or any application requiring a direct power response with a ratio reduction.

FEATURES & BENEFITS
  • Vertical offset, lightweight aluminum alloy housing
  • Bi-directional lubrication pump
  • Simplified design without a clutch
  • Same installation envelope as standard marine transmission
  • Same ratios as MGX-5204SC
  • Metric design (except for some power transmitting and plumbing components)
  • Marine survey society type approvals and unit certification available
STANDARD EQUIPMENT
  • Input flange for freestanding installation
  • Oil strainer mounted
INPUT RATINGS

Reduction Ratios

Pleasure Craft

Light Duty

Intermediate Duty

Medium Duty

Continuous Duty

:1

@ 2300 RPM

@ 2300 RPM

@ 2100 RPM

@ 1800 RPM

@ 1800 RPM

1.17, 1.33, 1.53
1.76, 2.03, 2.48, 2.92

1104 kW
(1480 hp)

979 kW
(1313 hp)

858 kW
(1151 hp)

716 kW
(960 hp)

716 kW
(960 hp)

3.48

1081 kW
(1450 hp)

837 kW
(1122 hp)

720 kW
(966 hp)

600 kW
(805 hp)

600 kW
(805 hp)

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly. The maximum allowable rated engine/motor speed is 2300 rpm.

OPTIONAL EQUIPMENT
  • Adaptations for close coupled installation
  • Companion flange/bolts set
  • Mounted heat exchanger
  • Mounting brackets
  • Monitoring devices to customer’s specification
DIMENSIONS & WEIGHT

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.

Enlarge

C

248 mm (9.75 in)

S

222 mm (8.75 in)

F

643 mm (25.31 in)

L

375 mm (14.75 in)

R

267 mm (10.50 in)

Weight

320 kg

* Estimated dry weight without input housing & with GWB 587.50 input hub.
