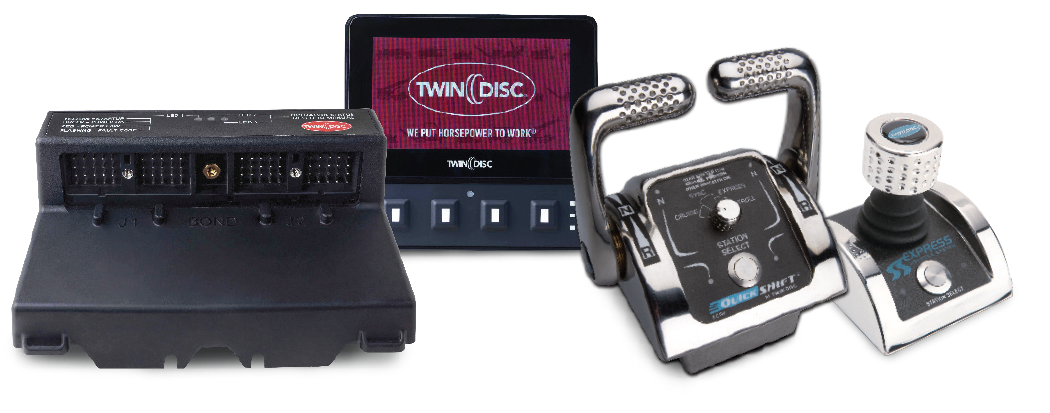

ADVANCED MARINE ELECTRONIC PROPULSION CONTROL SYSTEM

EC600PC

With the controller prewired to your QuickShift® transmission, the EC600PC is the simplest control system to install, eliminating the need for remote mounting, extra wiring and labor. Simply add a control head/station and you have a complete system to control your engine and transmission.

FEATURES
  • EJS®and EPS ready
  • Dynamic positioning (DP) integration ready
  • Independent CAN station busses provide maximum redundancy and reliability
  • Additional isolated CAN bus for communication between multiple EC600PCs
  • Dual power inputs
  • Computer-based setup and diagnostics
  • Minimal manual setup required with interface SmartChip™
  • Interface for all electronically governed engines
  • Throttle limit and clutch disable modes
  • Fault/event logging with expanded data. In addition to faults/events logged in control memory, each transmission has a SmartChipTM which records service, operation and fault data
  • Shaft brake control interface
  • Stabilizer disable interface
  • Station lockout and transfer options
  • Operates with EC300 digital control heads
  • RoHS compliant
  • Suitable for up to six shaft lines and six control stations
  • Type approvals and unit certification by major marine survey societies is available
APPLICATIONS
  • Commercial vessels
  • Military vessels
  • Pleasure craft
EC600PC PROPULSION CONTROL SPECIFICATIONS

Operating modes

Cruise/Sync/Express/Troll

Operating temperature

-40° to +85°C

Nominal operating voltage

12-24 VDC nominal

Communications

SmartChipTM LIN interface, SAE J1939 programming and station data links, SAE J1939 and NMEA 2000 communication protocols

Protection Class

IP67
